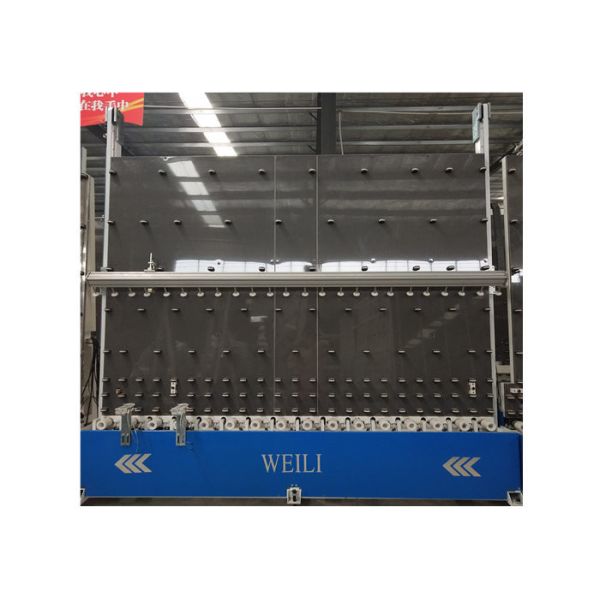

2.1 Meters Long High Configuration Insulating Glass Production Line
It can be upgraded according to customer's requirements
Main features:
1. Whole process with Omron PLC control system, man-machine interface touch screen .
2. Adopt Japanese Keyence coating detection switch, automatic identification of coated glass
and LOW-E glass
3 .Washing machine, dryer shell made of high quality stainless
steel material.
4. Upper drive in washing section, avoid water leakage of the
sealing parts aging .
5. A pair of brushes will drived by a motor or each brush with
separate motor control (optional ).
6. Adopt Japan SMC vacuum generator and sucker.
7 . Nine frequency control result in reasonable transportation and
efficient production.
8 . All photoelectric switches are supplied by Korean Autonics, ensure more accurate positioning.
9. The conveying wheel is polyurethane materials, wear resistance
and low noise.
Main technique parameter:
| Power Supply | 380V/50HZ 34Kw (according to customers’ demand) |
| Dimension(LxWxH) | 2130x2800x3300mm |
| Production quantity | 700-800IG units/8hs |
| Max Glass Size | 2200x3000mm |
| Min Glass Size | 300x400mm |
| Washing Glass Thickness | 3-15mm |
| Washing Glass Speed | 0-10m/min |
| Insulating Glass Thickness | ≤48mm |
| Transmission Glass Speed | 45m/min |
| Compressed Air: | 0.8m³/min |
| Air Pressure: | 1Mpa |
Main components:
| No. | Name | Brand | Brand Place |
| 1 | PLC | OMRON | JAPAN |
| 2 | 10.0inch Touch Screen(10.0) | KINCO | SHENZHEN |
| 3 | Photoelectric Switch | AUTONICS | KOREA |
| 4 | Limit Switch | AUTONICS | KOREA |
| 5 | Transducer | SCHNEIDER | FRANCE |
| 6 | Vacuum Generator & Sucker | SMC | JAPAN |
| 7 | Low-voltage electric components | SCHNEIDER | FRANCE |
| 8 | Solenoid Valve | AIRTAC | TAIWAN |
| 9 | Cylinder | AIRTAC | TAIWAN |
| 10 | Straight Guide Rail | HIWIN | TAIWAN |
| 11 | Driving Wheel | Polyurethane | JOINT VENTURE |
| 12 | Soft Brushes | φ180mm High Temperature Nylon Can wash low-e glass | JOINT VENTURE |
| 13 | Cleaning Section | 304 Stainless steel | CHINA |
| 14 | Bearing of Cleaning Section | SKF(oil-free lubrication waterproof)SKF | SWEDEN |
| 15 | AC digital servo motor | SIMENS | GERMANY |
| 17 | Transmission Motor | DPG(TAIBANG) | CHINA |
| 18 | Hydraulic Parts | HUA DE | BEIJING |
| 19 | Triplet | AIRTEC | TAIWAN |
| 20 | Gas-type Fitting | AIRTECK | TAIWAN |
| 21 | Oil pump | JILI | TAIWAN |
Kindly note:
Before you buy the machine, please make sure then tell me your
local power supply,then we can make the right according to your
true voltage.
FAQ:
1.Question:Are you a manufacturer?
Answer:
Yes,we are the professional insulating glass processing machines
manufacturer, which has 16 years history since 2001.
2.Question: How about the service ?
Answer:
1).Reply it at once in WhatsAPP,if by email,it will be reply within
12 hours.
2).18 hours for after-sale serive
4).more than 15 years experience in this kind machine field
5).fluent english ,communication barrier free. Point-to-point
service help you solve the problems timely.
3.Question:What’s the guarantee ?
Answer:
1). Our guarantee for 12 months.
2). 18 hours’ technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical
support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. We can will send one or two professional technicians (one
is electrical engineer, one is mechanical engineer) to install and
adjust the machines and help train the workers.
5.Question: Why your price isn't the lowest price compared with
others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We
have a a professional and experienced technical elite team. Every
year we will apply for innovation patents for our insulating glass
machine, likes auto gas filling machine, auto loading machine and
etc.
2)Compared with the same level brand, we have the same functions
and components, but our price is the most competitive. At the same
time, our after sales service is satisfactory. We have a good
reputation in our customers.
Packing and delivery:
1.Machine packing with plywood pallet or according to customers`
requirements
2.In plywood pallet and plastic film
3.In container
