    Touch Screen Automatic Coating Butyl Machine Process Frames From 6-19mm Width

    Ask Lasest Price
    Brand Name : WGM
    Model Number : WL-2000
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 2000 sets/per year
    Delivery Time : 10 to 30 days
    • Product Details
    • Company Profile

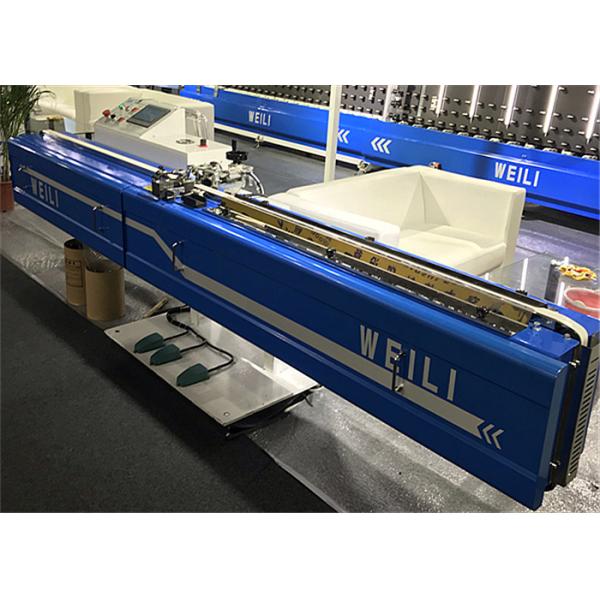

    Touch Screen Automatic Coating Butyl Machine Process Frames From 6-19mm Width

    Touch Screen Automatic Coating Butyl Machine Process
    Frames From 6-19mm Width

    Main Feature
    1. Butyl extruder can process frames from 6-19mm width.
    2. The feeding nozzle can be positioned to deliver uniform sealing.
    3. Pneumatic operation of butyl process is controlled by a PLC that electrically regulates the temperature of the butyl heaters.
    4. A timer enables the preheating of butyl ahead of the start of operation.
    5. The height adjustment is available according to the frame size.
    6. The nozzle width shall be controlled by pneumatic and hydraulic parallel method.
    7. Conveyor speed can be adjusted with 5 conveyor speed.
    8. Possible to control the length of butyl application and monitoring current production quantity on the touch screen.
    9. Adopt Germany pneumatic pump, brand Maximator (as pictures above).
    Main Technique Parameter
    Machine Size(mm)3000(L)x600(W)x950(H)
    Space Width6mm-25mm
    Minimal Size250x250mm
    Maximal Size2500x2500mm
    Speed0-25m/min
    Butyl Volume14L
    Power SourceAC 380V 3ph 50HZ
    Total Power3.75kw
    Air Pressure8kgf/cm²

    Main Electrical Component
    No.BrandCountry
    1.low-voltage electrical componentSCHNEIDERFRANCE
    2.PLCOMRONJAPAN
    3.Touch screenOMRONJAPAN
    4.transducerOMRONJAPAN
    5.Temperature controllerOMRONJAPAN
    6. approaching switchAUTONICSKOREA
    7.optoelectronic switchOMRONAPAN
    8.pneumatic pumpMAXIMATORGERMANY
    9.hydraulic solenoid valveATOSITALY
    10.Air partsAIRTACTAIWAN
    11.Air-hydraulic pressure cylinderHUAYINGCHINA
    12.MotorDONGBANGCHINA

    Why choose us
    1)Great Service
    Pre-sale service
    * Inquiry and consulting support.
    * Visiting our factory.
    * Professional customize
    After-sale service
    * Engineers available to service machinery overseas.
    * Online support
    * Video technical support
    * Field maintenance and repair service
    * Field installation commissioning and training
    2)18 YEARS EXPERIENCE
    Jinan Weili Machine Co., Ltd.Our company mainly specializes in producing insulated glass equipment and glass deep-processing equipment. We also provide PVC window machines and Aluminum window machines. We always supply our customers with high quality products, and our company has attained CE Certificate. Since our establishment, we have insisted on the concept of "innovation with technology, sincere service, being honest and reliable". We produce a large quantity of first-class insulated glass processing equipment. Our products sell well at home and abroad, and some are exported to Europe, America and Southeast Asia. Jinan Weili Machine Co., Ltd. is widely accepted by customers from home and abroad. Strong market competition consciousness makes us always being ahead in the industry. We hope to develop with you hand in hand for a brilliant future. We will always provide you with amazing service and high-quality products. We are sincerely looking forward to your cooperation with us for mutual benefits.​
    3)CE approved

    4)Factory Direct
